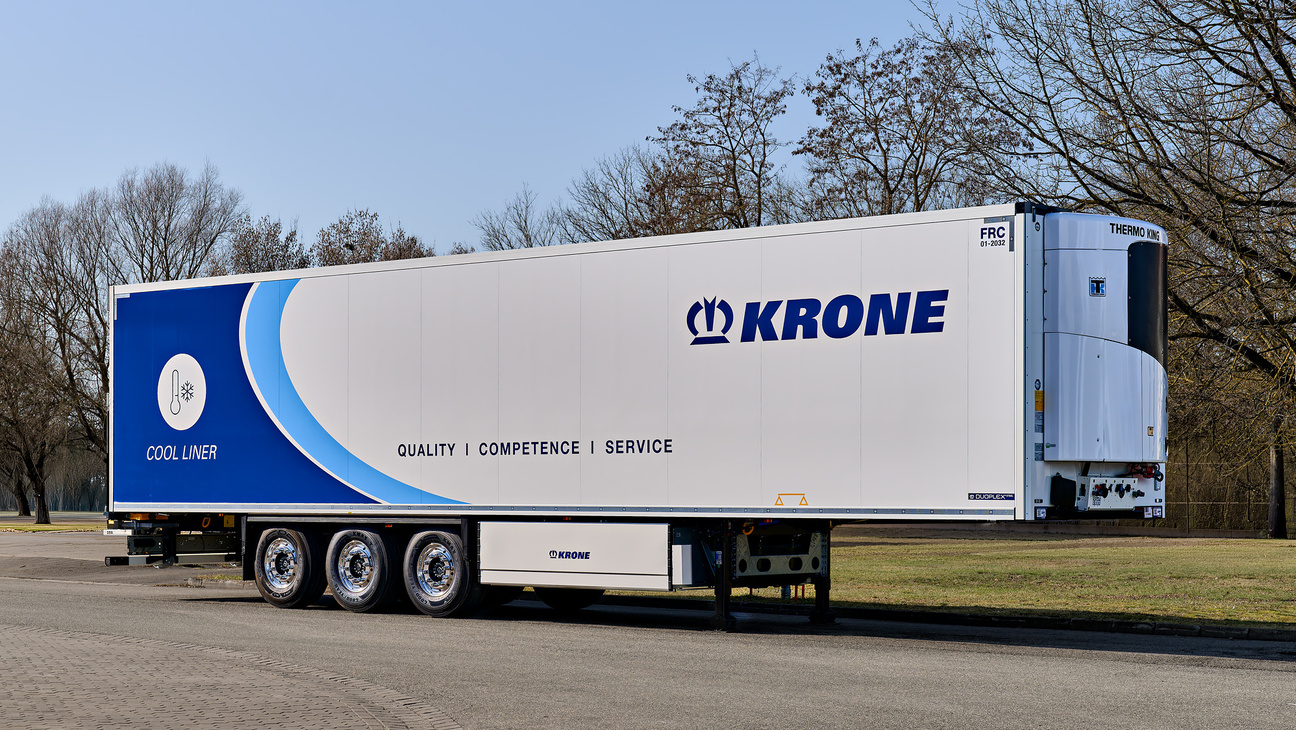

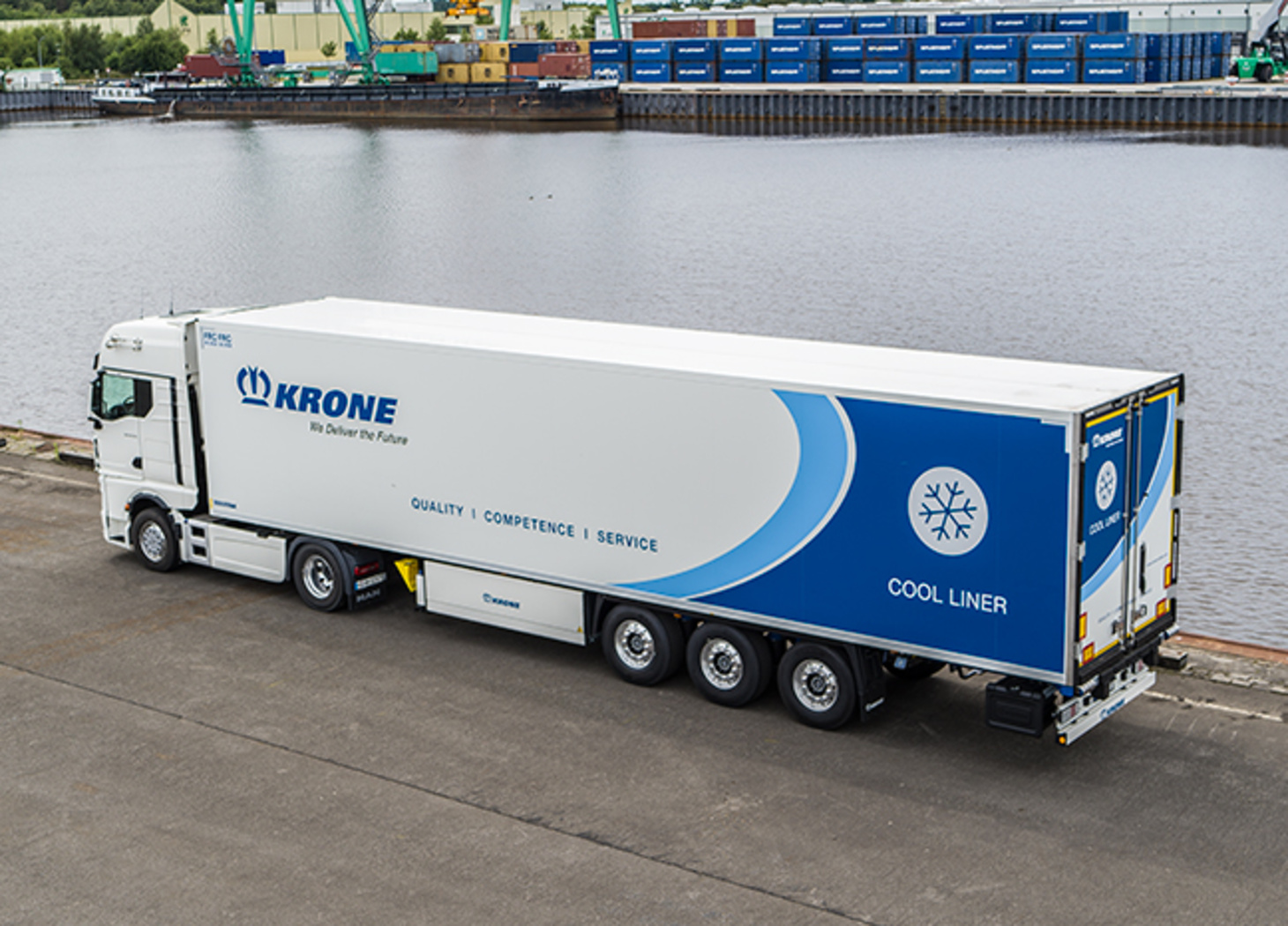

Closed refrigerated semi-trailer, specially designed for transporting animal carcasses on hooks, with precise temperature control to maintain product quality. The robust construction includes integrated metal frames in the side walls and ceiling, supporting longitudinal hook rails mounted on the ceiling. These steel reinforcements provide stability for up to five hook lines, complete with stoppers and protection against hook detachment.
Cool Liner Meatis designed for demanding refrigerated transport conditions. The chassis, structure, and equipment are stable and well thought out, from flexible air ducting and liquid-tight flooring to stainless steel rear door locks. Numerous details developed together with customers ensure compliance with the highest safety and hygiene standards.
The semi-trailer is HACCP certified, and depending on the type of carcasses transported, it can be equipped with a specific number of hook rails and matching hooks.

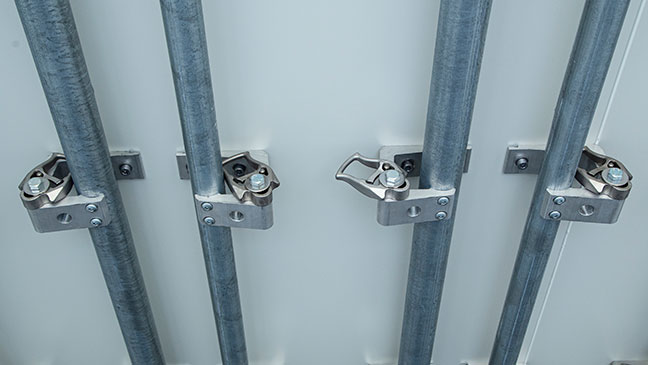

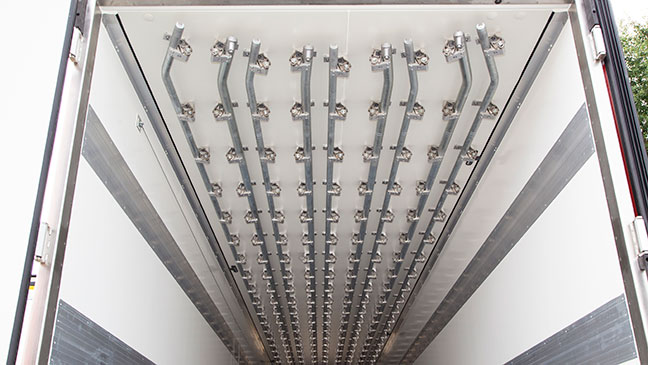

5 meat hanging rails with stoppers for the hooks
Excellent insulation
Liquid-proof floor
Continuous chassis for stability and durability
Superstructure optimized for shock absorption
Kingpin load: 12,000 kg
Axle load: 27,000 kg
Gross vehicle weight: 39,000 kg
Unladen weight (without refrigeration unit): 8,630 kg
Axle spacing: 1,310 / 1,310 mm
Internal length: 13,310 mm
Internal width: 2,460 mm
Internal height: 2,600 mm
Meat hanging rails: 5 rails with stoppers for the hooks











We always strive to be close to you! Contact us for more information.
Refrigerated semi-trailer with continuous chassis, sandwich panel walls, and refrigeration unit chosen by the customer.
